RCW-AEROSPACE -- WELD CHAMBER

RCW-Aerospace - Specialist Welding Systems offer a range of welding chambers and anciliary equipment for the production of X-Ray quality welded components in Titanium, Stainless Steel & other Oxygen sensitive materials.
-
We take this opportunity of introducing you to our product range:



RCW-AEROSPACE

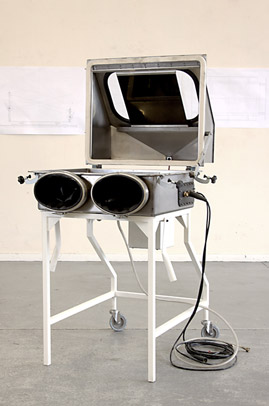

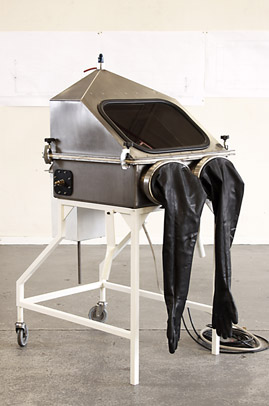

MODEL: RCW-1

Small Portable Welding Chamber
RCW-AEROSPACE - PORTABLE WELD CHAMBER - RCW-1   RCW-AEROSPACE - PORTABLE WELD CHAMBER - RCW-1   RCW-AEROSPACE - PORTABLE WELD CHAMBER - RCW-1
  • A small portable 2 glove-port welding chamber.
  • Top loading and quick purging.
  • Ideal for small components requiring a rapid 'turn-around'.
Dimensions:
Length = 700mm
Width = 600mm
Height = 450mm - (Working height)

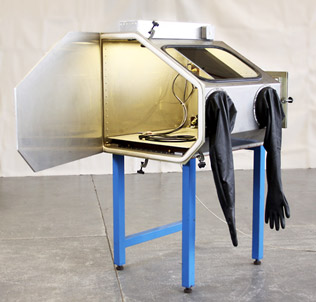

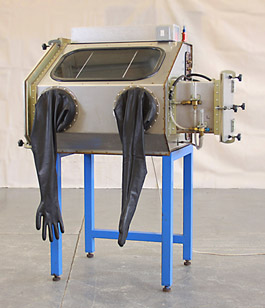

RCW-AEROSPACE

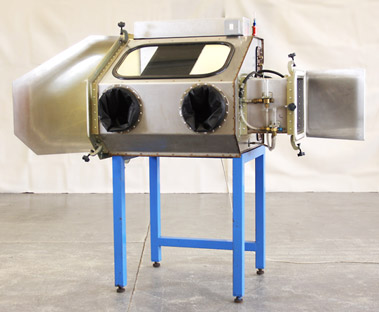

MODEL: RCW-2

Medium Range Welding Chamber
RCW-AEROSPACE - MEDIUM WELD CHAMBER - RCW-2 RCW-AEROSPACE - MEDIUM WELD CHAMBER - RCW-2 RCW-AEROSPACE - MEDIUM WELD CHAMBER - RCW-2
  • A medium sized 2 glove-port welding chamber.
  • Large access door and permanent anti-chamber - (Loading chamber).
  • Fully adjustable height mounting frame.
  • Sliding filter glass - (No headshield required).
  • Ideal for production runs of small and medium sized components.
Dimensions:
Length = 750mm
Width = 700mm
Height = 500mm - (Working height).

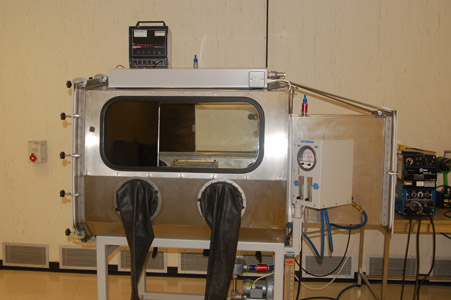

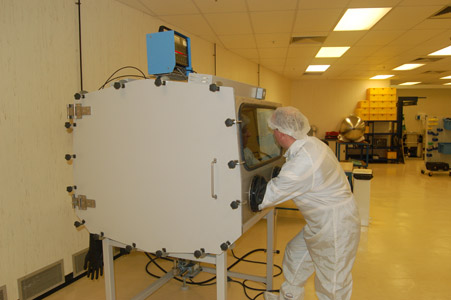

RCW-AEROSPACE
MODEL: RCW-3

Large Range Welding Chamber
RCW-AEROSPACE - LARGE WELD CHAMBER - RCW-3   RCW-AEROSPACE - LARGE WELD CHAMBER - RCW-3
  • A large welding chamber with 5 glove-ports, large access door and a choice of anti-chamber - (loading chamber) lengths.
  • Pumped purging cycle with dual point pressure guage.
  • Atmosphere calibration by PBI-SGI-3 O2 monitor.
  • Fully adjustable height mounting frame.
  • Suitable for manual or automated welding processes.
  • Can accommodate large fixture mounted components.
Dimensions:
Length = 1080mm
Width = 1080mm
Height = 780mm - (Working height).

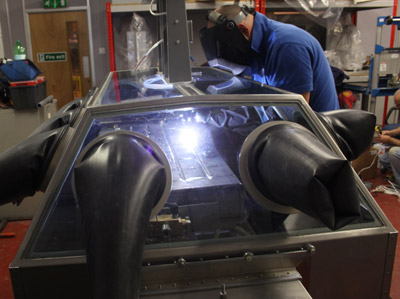

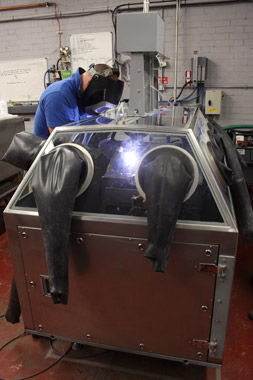

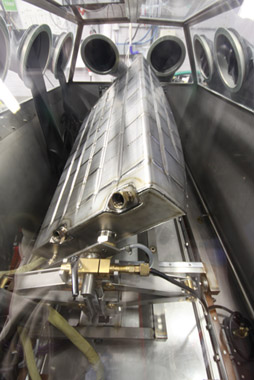

RCW-AEROSPACE
MODEL: RCW-12P

Large 12 Port Welding Chamber
(Shown with Revolving & Tilting Workstation)
RCW-AEROSPACE - 12-PORT LARGE WELD CHAMBER - RCW-4

RCW-AEROSPACE - 12-PORT LARGE WELD CHAMBER - RCW-4   RCW-AEROSPACE - 12-PORT LARGE WELD CHAMBER - RCW-4
  • A long welding chamber with 12 glove-ports.
  • Flush fitting loading door.
  • Detachable anti-chamber - (Loading chamber).
  • Plus all other features of the RCW-3 weld chamber.
  • Designed to accommodate a revolving, tilting workstation for both manual and automated processes.
  • Fitted with 2 additional glove-ports for workstation manipulation.
Dimensions:
Length = 1600mm
Width = 1000mm
Height = 900mm
